| Model | ||
| Audio input | Network video input | 8channel |
| Audio output | HDMI output | 1channel, resolution: 1024 x768, 1280 x1024, 1366 x768, 1440 x900, 1920 x1080, support audio output |
| Video standard | H.264/H.265 | |
| Audio standard | G711A | |
| Audio & video code | Resolution | 5MP/3MP/1080P/720P |
| Synchronous playback | 4channel@3MP/2channel@5MP | |
| Video | Video mode | Timing video, event video |
| Playback modes | Scheduled playback and event playback | |
| Backup mode | U disk backup | |
| Storage | One SATA port | Support up to 6TB，Supports 3.5-inch and 2.5-inch hard disks |
| Wireless standards | WIFI 2.4G(IEEE802.1b/g/n) | |
| Two 2.4g integrated antennas | ||

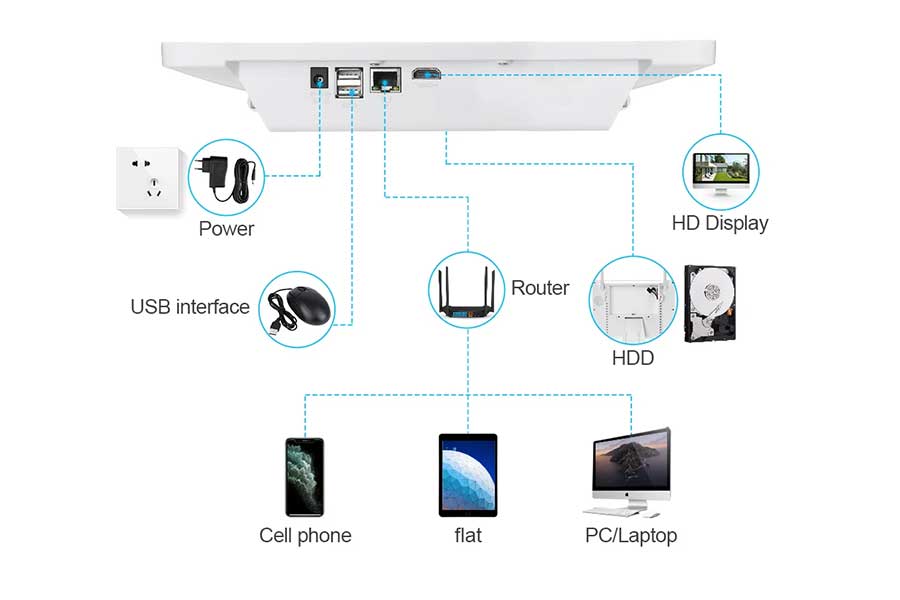

| Interface | Network interface | One RJ45 10M/100M adaptive Ethernet port with built-in wireless Internet access function |
| USB interface | 2 USB2.0 | |
| Audio output | One 3.5mm headphone jack | |

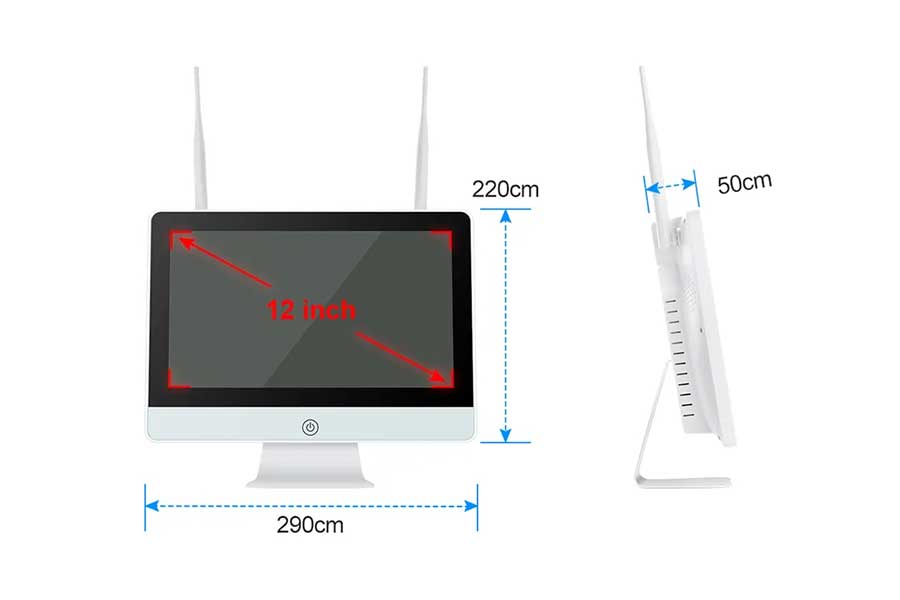

| LCD display | 12.5-inch IPS full VIEW HD screen with 1920 x 1080 screen resolution | |
| Power | DC12V/3A | |
