| Wireless NVR | ||
| Module | K8210-3WS | |
| Video and audio input | Network audio and video input | 10CH |
| Video and audio output | HDMI output | 1CH，Resolution：1024x768，1280x1024,1440x900,1920x1080,Support audio output |
| VGA output | 1CH，Resolution：1024x768,1280x1024,1440x900,1920x1080p | |
| video decoding standard | H.264，H.265 | |
| Audio decoding format | G711A | |
| Video and audio codec parameters |
Resolution | 5MP/3MP/1080P/720P |
| Synchronized playback | 4CH@3MP | |
| 2CH@5MP | ||
| Video management | Recording mode | Timing recording, Motion detection recording, Alarm recording |
| playback mode | Regular playback, event playback | |
| Backup mode | U disk backup | |
| HDD | Type | 1 SATA interface |
| Max capcity | Support cloud storage or HDD with a maximum capacity of 6TB | |

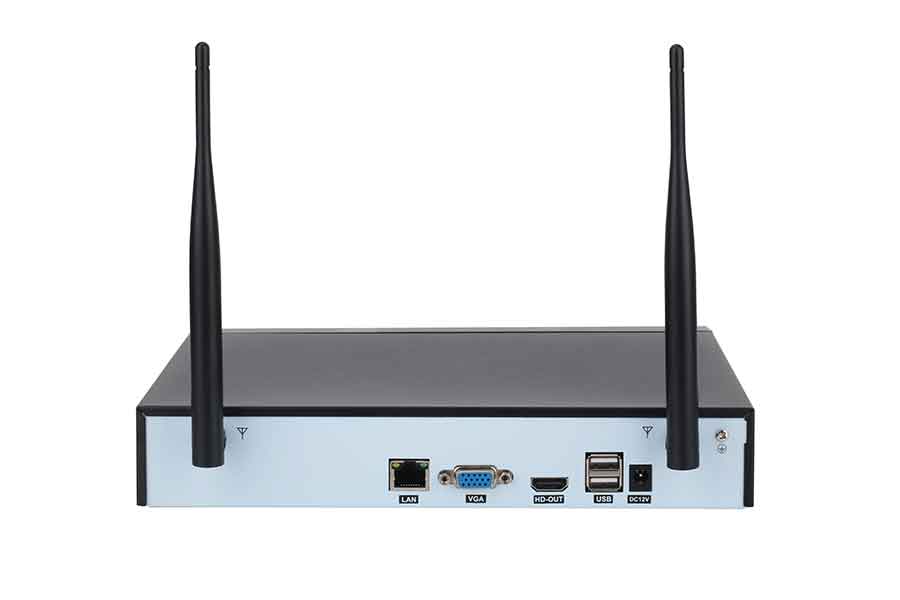

| External interface | Network Interface | 1 RJ45 10M/100M adaptive Ethernet port |
| 1 built-in wireless network card | ||
| Antenna interface | 2 2.4G integrated antennas | |
| USB interface | 1 USB2.0 (optional 2 USB 2.0) | |
| Audio port | 1 3.5mm headphone port (optional speaker amplifier output) | |
| Others | Power | DC 12V2A |
| Power consumption (without HDD) | ≤5W | |
| Wireless Camera Specification | ||
| Technical Parameters | Model | |
| Sensor | 1/3” Progressive Scan Sensor | |
| Resolution | 2304*1296 16 : 9 High Defination | |
| Minimum illumination | Color: 0.01 Lux; B/W: 0.001 Lux | |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 4mm | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| smart stream | Dual-stream: 2304*1296@15fps 800*448@15fps |
|
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Working Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1A | |
| Power consumption | ≤6W | |
| Size | 66*180mm | |
| Weight | 500g | |
| Level of Protection | IP66 | |
