| Model NO. | ||
| Camera | ||
| Solution | GK7205V300+1/2.8" SC5239P CMOS | GK7205V300+1/2.8" IMX335 CMOS |
| Image | 5MP 2880*1616@25fps 18X ZOOM | 5MP 2592*1944@25fps 18X ZOOM |
| TF card | support 128G | |
| Digital Noise Reduction | 2D/3D DNR | |
| Image Setting | Auto white balance; Auto exposure; Backlight compensation; Support D-WDR; Electronic defogging; Daylight anti-flash | |
| General Function | Horizontal flip and vertical flip | |
| Lightning Protection | Comprehensive lightning protection of power supply and network | |
| Business Function | Support: WEB configuration, OSD, motion detection, center alert after motion detection alarm, screen pop-up linkage, MJPEG capture, VMS remote monitoring software, MYEYE platform and other system applications, SDK development kit | |
| Lens | ||
| Lens Focal Length | 5.9±5%~108±5%mm | |
| Field of View | Wide: Diagonal 62.0° Horizontal: 54.8° Vertical: 31.5° | |
| Tele: Diagonal 4.1° Horizontal: 3.59° Vertical: 2.03° | ||
| Aperture Value | F1.8~F3.9 | |
| Rotation Control | ||

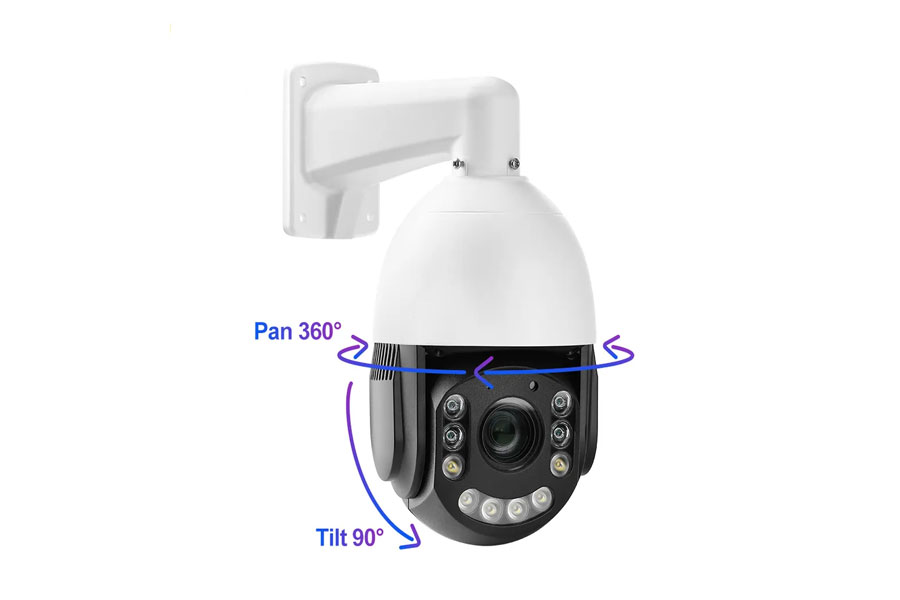

| Range | Pan: 360° Pan: 0-93º | |
| Speed | Pan: 45°/s Tilt:30°/s | |
| Video | ||
| Video Compression | Support H.265+/H.265/H.264; Support dual stream and AVI format; Code stream 0.1M~8Mpbs adjustable; Frame rate 1~30 fps adjustable | |
| Audio | ||
| Audio Compression | G.711 | |
| AI+ | ||
| General SC5239P | Support human detection, and intelligent function customization | |
| General IMX335 | Support human detection, and intelligent function customization | |
| Alarm | APP alarm, sound alarm | |
| Network | ||
| Protocols | Support RTSP/ FTP/ DHCP/ NTP/ UPNP/ Onvif/ HIKVISION private protocol, etc. | |
| APP | ||
| Mobile View | Android, IOS | |

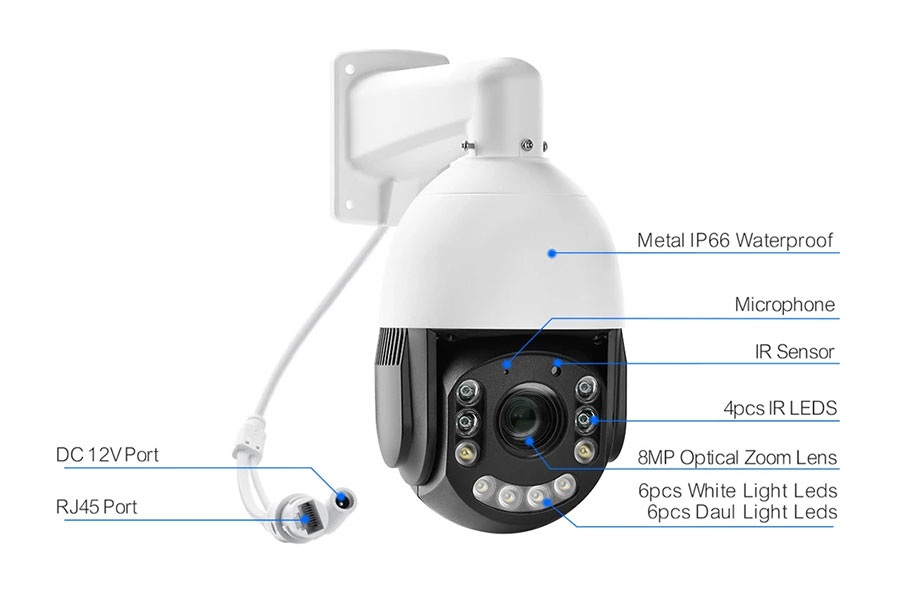

| Interface | ||
| Communication Interface | 1 RJ45 10 M / 100 M Ethernet interface | |
| TF Card | Only SC5239P Support | |
| Microphone | Built in | |
| Speaker | Built in | |
| Reset | Not Support | |
| Light | ||
| IR Distance | Up to 120m | |
| LEDS | 6PCS Daul Light LED+4PCS IR LED | |
| Rotation Function | ||
| Preset Point | 220 pcs | |
| A-B Scan/Guard | Support | |
| Auto Tracking Range | 3M-50M | |
| General | ||
| Power Supply | DC：12V±25％ | |
| Power Connector | Φ5.5mm circular interface | |
| Operating Conditions | -30℃ ~ 55℃ | |
| Factory Data Reset | Support software to restore factory settings | |
| Material | Metal + plastic | |
| Weather Proof Rating | IP66 | |
