| Model | ||
| System | System structure | Embedded RTOS design, dual core 32-bit DSP (xm650), pure hard compression, watchdog |
| Video | Senser | 3million high-performance CMOS sensors; Color 0.001Lux@F1.2 , black and white 0.0001Lux@F1.2 |
| Video processing | H. 265x encoding, dual bitstreams, avi format; Code stream 0.1m~8mpbs adjustable; | |
| Image output | Main code stream: 2288* 1288@12fps ； Sub code stream: 640* 360@12fps | |
| Shutter | 1/50 (1/60) seconds to 1/10000 seconds | |
| Noise reduction | 2d/3d noise reduction | |
| Wide dynamic | Digital wide dynamic | |
| Lens | 4mm HD lens | |
| Day night mode | IR-CUT，intelligent dual light，full color night vison,human detection trigger white light | |
| Light distance | Infrared 15m, white 15m (4 white, 2 infrared) | |
| Audio | Audio processing | G. 711a encoding and decoding standard, two-way voice intercom function, audio and video synchronization |
| Audio interface | -33dB high sensitive mic, 8 Ω 1W high quality waterproof horn | |
| PTZ | 355 degrees horizontal, 90 degrees vertical | |
| Auto human tracking, guard position | ||
| 4G | EU | FDD:B1/3/5/7/8/20/28 TDD:B38/40/41 WCDMA:1/5/8 |
| Alarm | PIR human induction | |
| Mobile app push, voice alarm, video recording, capture pictures | ||
| Video | Wake up | Support PIR human sensing and microwave dual detection wake up video, support mobile phone APP remote wake up |
| Video | Time video, event video | |
| Playback | Event replay, time replay | |
| Storage | Storage | Local TF card, up to 128G; Cloud storage |
| Other | Reliability | Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65℃ high temperature test is stable and reliable |
| Phone monitoring | Support for mobile monitoring (iOS, Android) | |

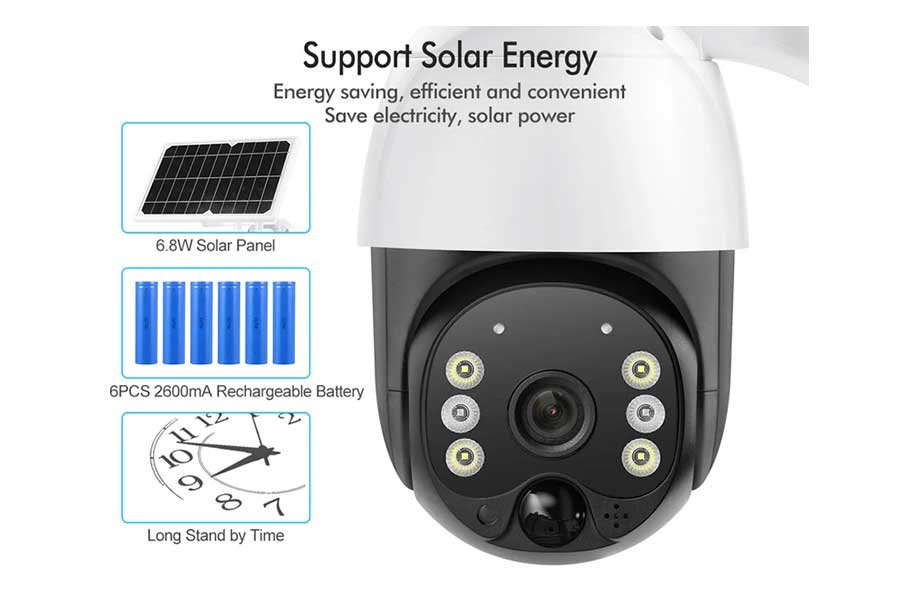

| Power | DC5V 6 pieces 18650 batteries | |
| Solar panel | 6.8W | |
| Reset | Supports one-click reset | |
| Environment | Temperature | -20℃ to +55℃ |
| Humidity | 30% to 80% RH | |
