| Operating System | Embedded Linux | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
| Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/2/4/6/8/9/16 | |
| Video | Video input (IP) | 16*4K（Access bandwidth 80Mbps） |
| Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
| Display quality | Max:4K | |
| Playback quality | 4K/5M/4M/3M/1080P | |
| VR | Unsupport | |
| human shape / Face | Support(depend on camera) | |
| Audio | Audio compression | G.711A |
| Intercom | unsupport | |
| Record & playback |
Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Localpayback(real-time+ Un real-time) | 4K（1*real-time）/5M（1+1）/4M（2+1） /3M（3+1）/1080P（4+1） |
|
| Search mode | Search by Time/Calendar/Event/Channel /Face |
|
| Record storage | HDD、Network | |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner |
|
| External interface |

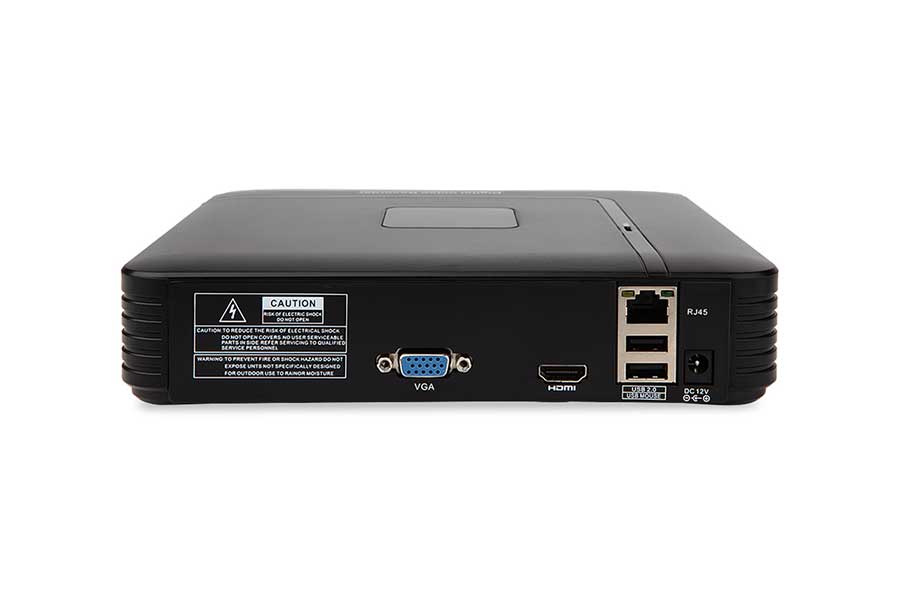

Video output | 1ch VGA，1ch HDMI HD output |
| Audio I/O | 0/1（3.5MM audio output） | |
| Alarm I/O | 0/0 | |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
| USB interface | 2*USB2.0 ports(one USB extension interface is reserved) |
|
| HDD | 1 SATA(Up to 14TB for each disk) | |
| ESATA | No | |
| Serial interface | No | |
| Other | ONVIF | Support |
| Power supply | DC 12V/2A | |
| Power Consumption | <10W(Without HDD) | |
| Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
